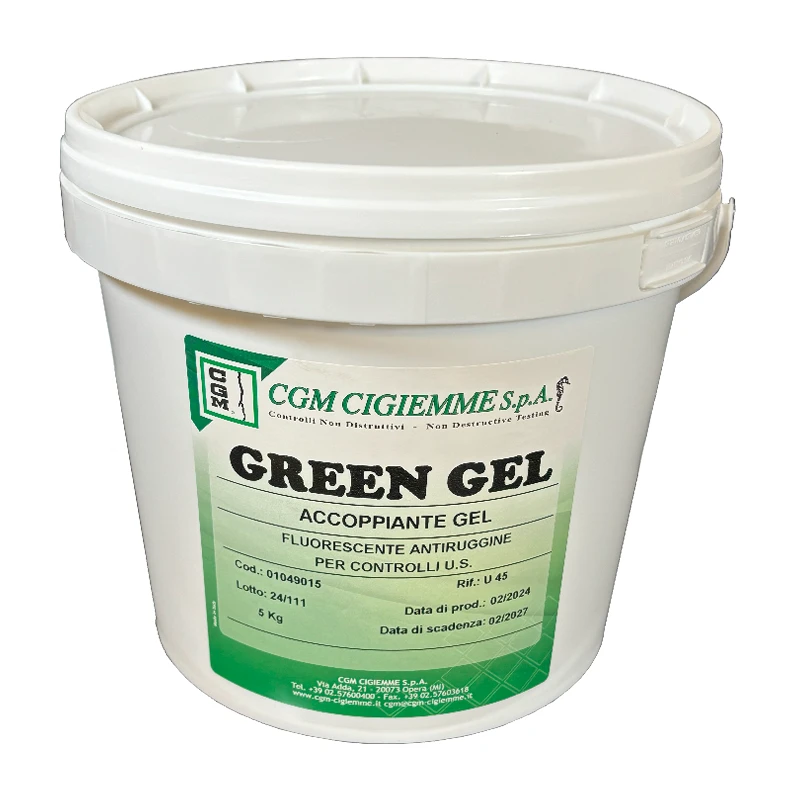

Green Gel U 45

Technical datasheet

General description

Green Gel U 45 is a water-based thixotropic green coupling gel that can be used in the temperature range -20°C / 120°C. It is composed by anti-corrosive so as not to affect the surfaces being tested. Suitable for use on various types of surfaces, smooth or uneven, it is also recommended for non-optimal situations, such as vertical and underhead inspections. Moreover, as it fluoresces under UV light, it is easy to detect and remove. The product is non-toxic to the skin, has no hazard labelling and is not harmful to the environment.

Packaging

5 kg buckets

Part Number: 01049015
1 kg jar

Part Number: 01049015

In Compliance with

  • ASME V Art.5 (T-533)

  • FAA AC 25-29 (glycerin free)

  • MIL-STD-271

  • PMUC (certificate of compliance upon request)

Features

  • Excellent coupling agent, suitable for different types of surfaces, smooth or irregular, and also recommended for non-optimal situations, such as overhead checks.

  • Fluorescent under UV light for an easy detection and removal.

  • Dry very slowly.

Product Properties

Appearance

Transparent green gel
Recommended dilution in potable water

0 to 1:1

User Recommendations

NDT Method

Ultrasonic testing
Usage temperature

From Da -20°C to 120°C
Shelf life

3 years at T between 5°C and 45°C, in a dry place safe from direct sunlight
