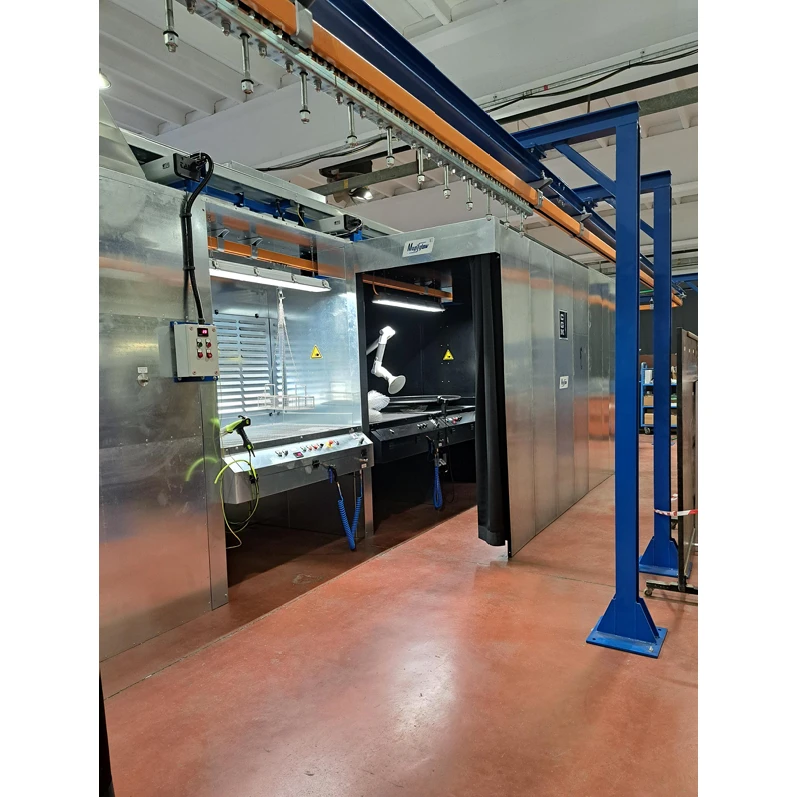

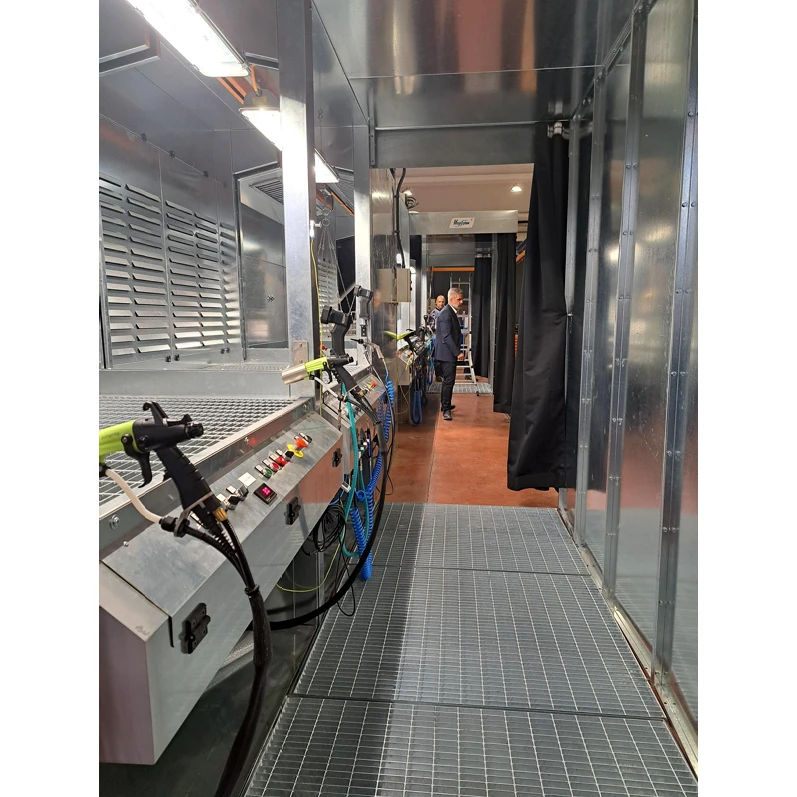

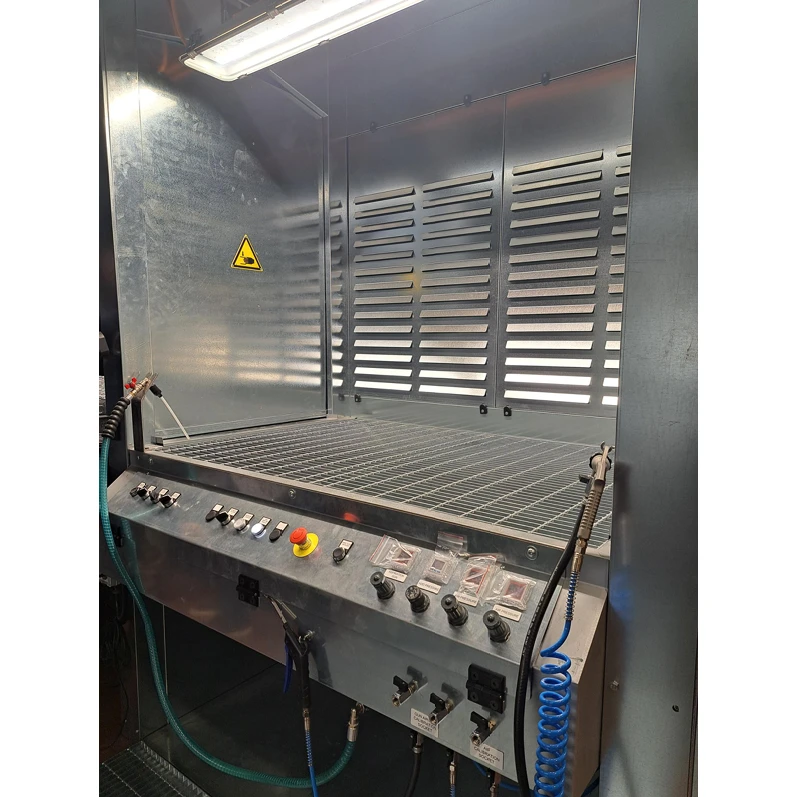

A New FPI Line for Aerospace

Yet another factory test successfully completed!

A brand new fluorescent penetrant (PT/FPI) inspection line – two different penetrant sensitivities/electrostatic application – for the inspection of aeronautical components has recently passed rigorous pre-acceptance tests with flying colors.

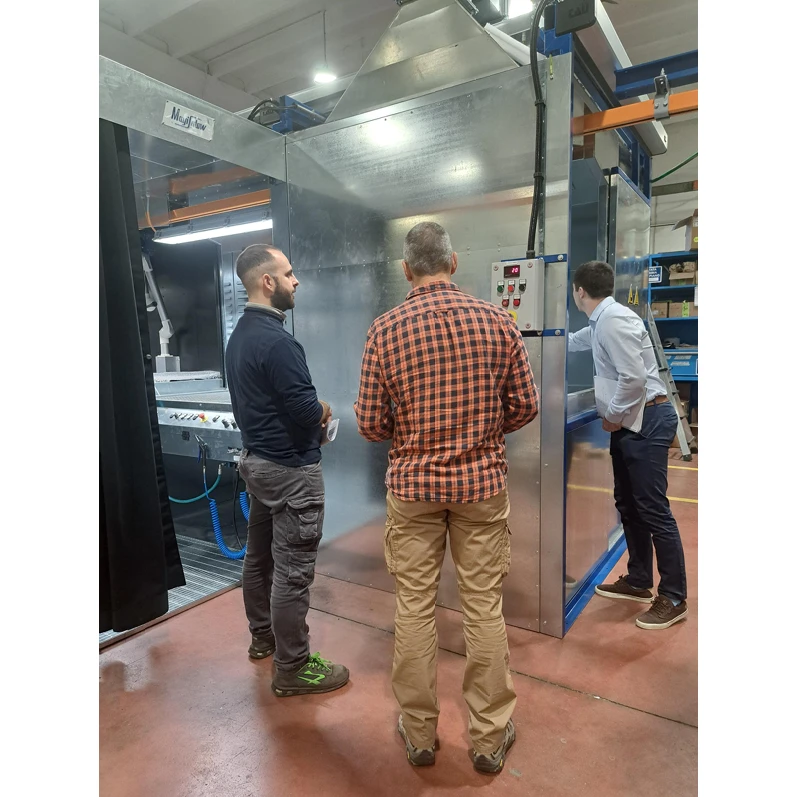

It is always a great pleasure for us to have our customers visit CGM facility so that we can ensure they are happy and fully satisfied with the new equipment tailor made for them.

 We look forward to seeing our customer achieve their operational goals with this new FPI line, that is sure to help them improve overall efficiency and quality.

Continue reading

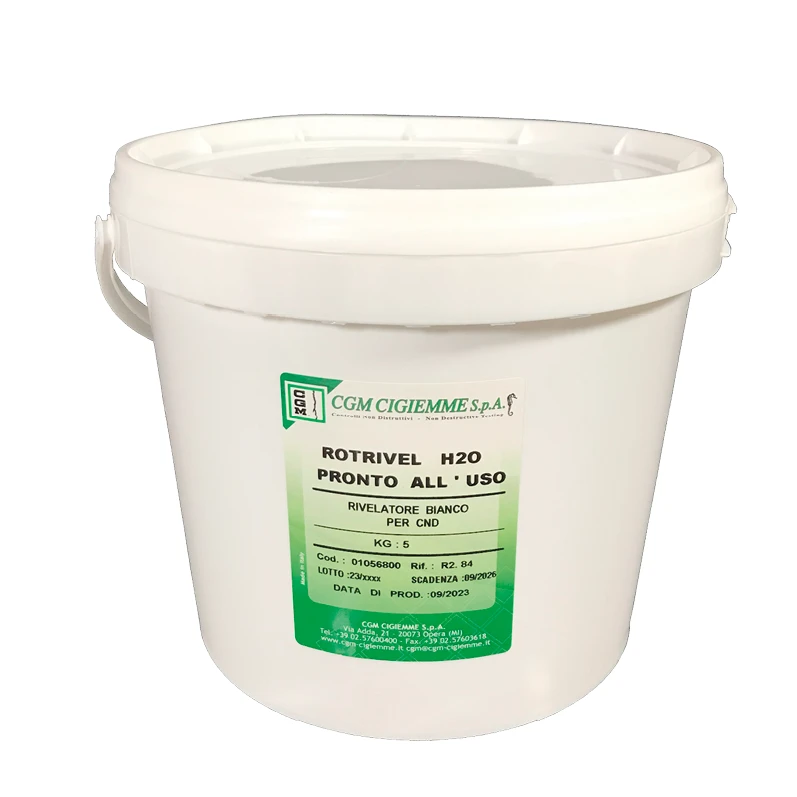

Rotrivel H2O Paste

Technical datasheet

General description

Rotrivel H2O Paste is a water-based paste developer that generates a milky white background, specific for high temperature applications, as it has no danger tags and as it is composed of inert inorganic particles suspended in water and glycols. It is therefore ideal for situations where it is not possible to use solvents. It must be diluted in water with a concentration of 30%.

Packaging

5 kg buckets

Part Number: 01056800

In Compliance with

  • ASME Sect. V – Art. 6

  • ASTM E165/E165M

  • ASTM E1417/E1417M

  • EN ISO 3452-2

  • AMS 2644 (Complies with the standard, but not included in the QPL list)

  • PMUC (certificate of compliance upon request)

Features

  • Milky white color.

  • Easy to apply.

  • It generates a very contrasting background.

  • Good sensitivity.

  • Easy to remove.

Product Properties

Appearance

Dense transparent liquid
Form

C
Flash Point Not flammable

User Recommendations

NDT Method

Dye and fluorescent liquid penetrant inspection
Shelf life 3 years at T between 5°C and 45°C
Usage temperature

From 4°C to 80°C

Related products

Continue reading

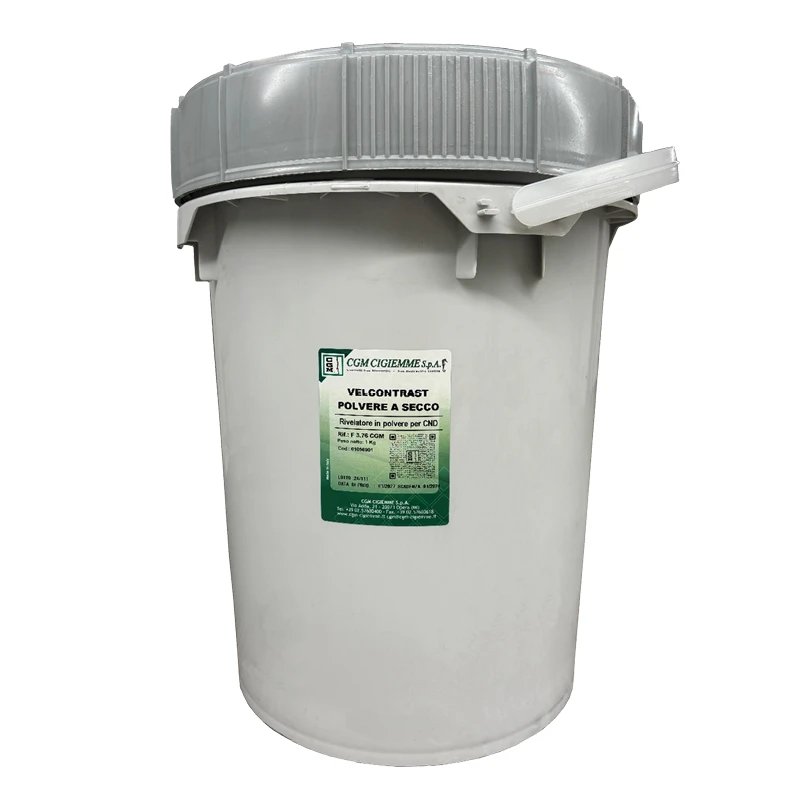

Velcontrast Dry Powder

Technical datasheet

General description

Velcontrast dry powder is a developer for fluorescent penetrant liquids. The particle size is about 5 μm, thus ensuring excellent surface coverage without risking excessive dust accumulation. In addition, it is easily removed from the surface after inspection.

Packaging

1 kg buckets

Part Number: 01056901

In Compliance with

  • ASME Sect. V – Art. 6

  • ASTM E165/E165M

  • ASTM E1417/E1417M

  • EN ISO 3452-2

  • AMS 2644 (Complies with the standard, but not included in the QPL list)

  • PMUC (certificate of compliance upon request)

Features

  • White color.

  • Easy to apply.

  • Non-toxic.

  • Excellent sensitivity.

  • Easy to remove.

Product Properties

Appearance

White powder
Average particle size

≈ 5 μm
Form

A

User Recommendations

NDT Method

Fluorescent liquid penetrant inspection
Shelf life 3 years at T between 5°C and 45°C
Usage temperature

From 4°C to 52°C
Related products

All CGM fluorescent penetrants

Related products

Continue reading

Detergent H2O

Technical datasheet

General description

Detergent H2O is a water-based degreaser used for preliminary and final cleaning in liquid penetrant and magnetic particle testing. It is supplied as a concentrate to be diluted in water with a concentration of 10% to 30%. It is composed by degreasin properties and is ideal for use on surfaces that cannot be in contact with solvents.

Packaging

10 L cans

Part Number: 02071710

Features

  • Not flammable.

  • It can be used in a wide range of concentrations.

  • Non-aggressive cleaning action.

Product Properties

Appearance

Transparent pink liquid
Flash Point Not flammable

User Recommendations

NDT Method

Liquid penetrant and magnetic particle inspection
Shelf life 3 years at T between 5°C and 45°C
Usage temperature

From 4°C to 80°C
Related products

All CGM penetrants and magnetic particles

Related products

Continue reading

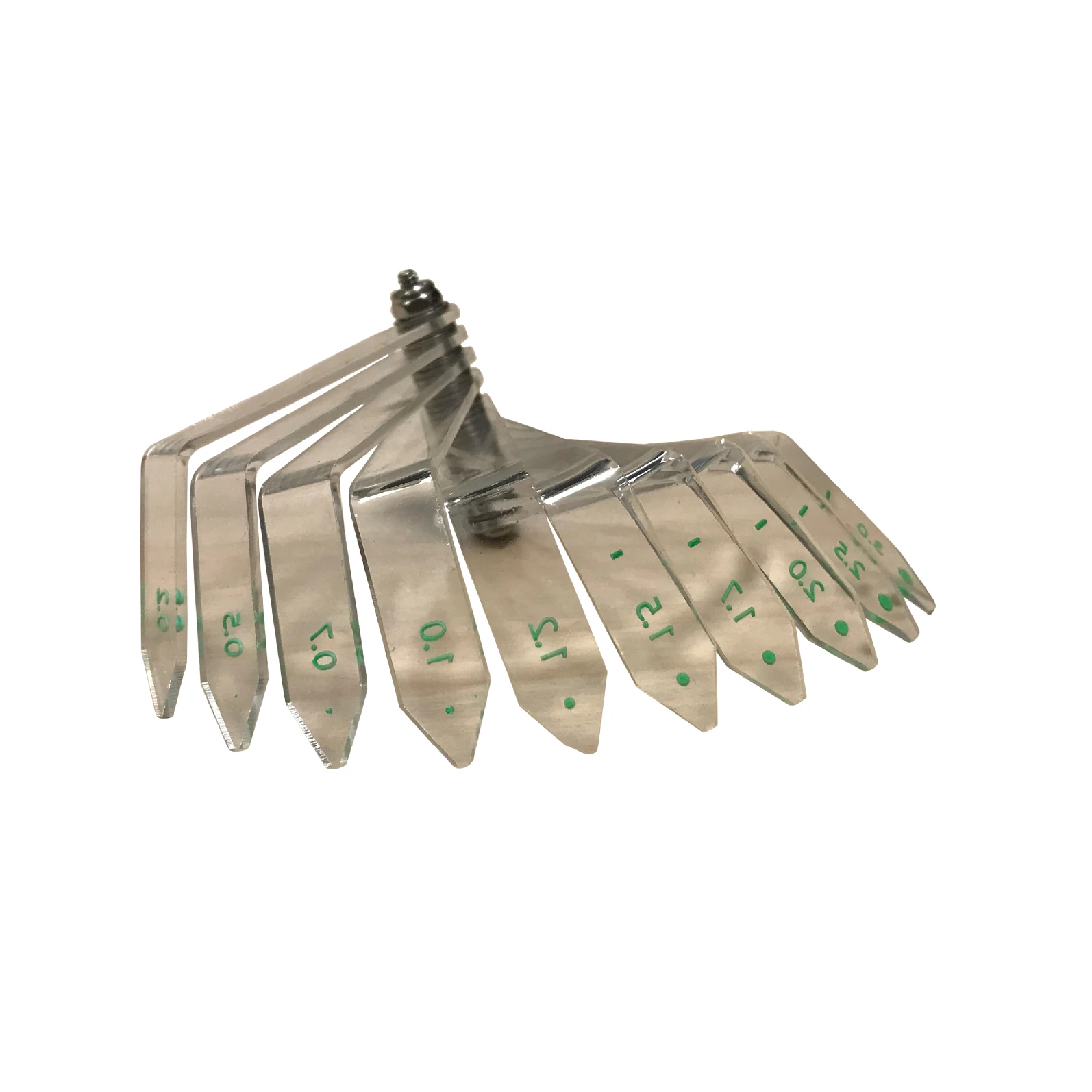

Swing Away TAM 190466 Crack Comparator

The Tam 190466 Swing Comparator presents highly fluorescent, sharp-angled “feeler gauge” style traces for linear and round indications. This comparator is made of transparent plastic and is used in the inspection booth to evaluate the size of defects ranging from 0.2 to 3.0 mm. The Swing Comparator features markings on the tapered ends for narrow radius comparisons.

Part Number Ref.
04099816

98.16

Continue reading

CGM Magazine third issue published!

We are very pleased to share that a brand-new issue of the CGM magazine is finally online.

In this latest issue you will find articles talking about state-of-the-art of the automatic defect recognition technique and its application to MT systems, an overview of the cutting-edge MT and PT solutions CGM has developed over the years for the aerospace industry, along with an interview by one of the leading players in the aerospace industry talking about their experience of working with CGM.

And many more!

Download or simply flip through the pages here:

https://www.cgm-cigiemme.com/en/cgm-magazine/

Hope you will enjoy reading it!

Continue reading
