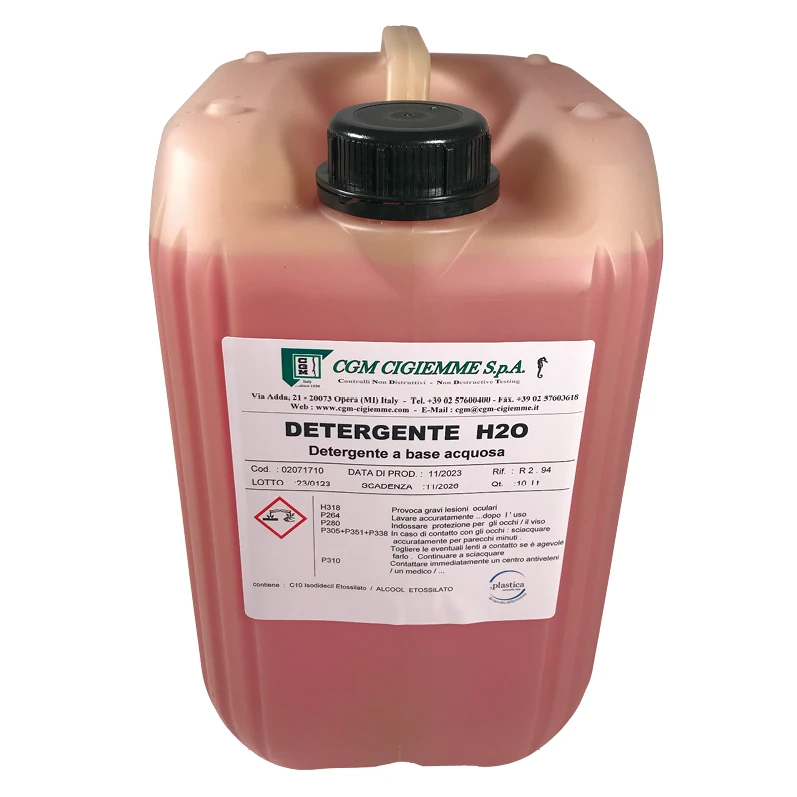

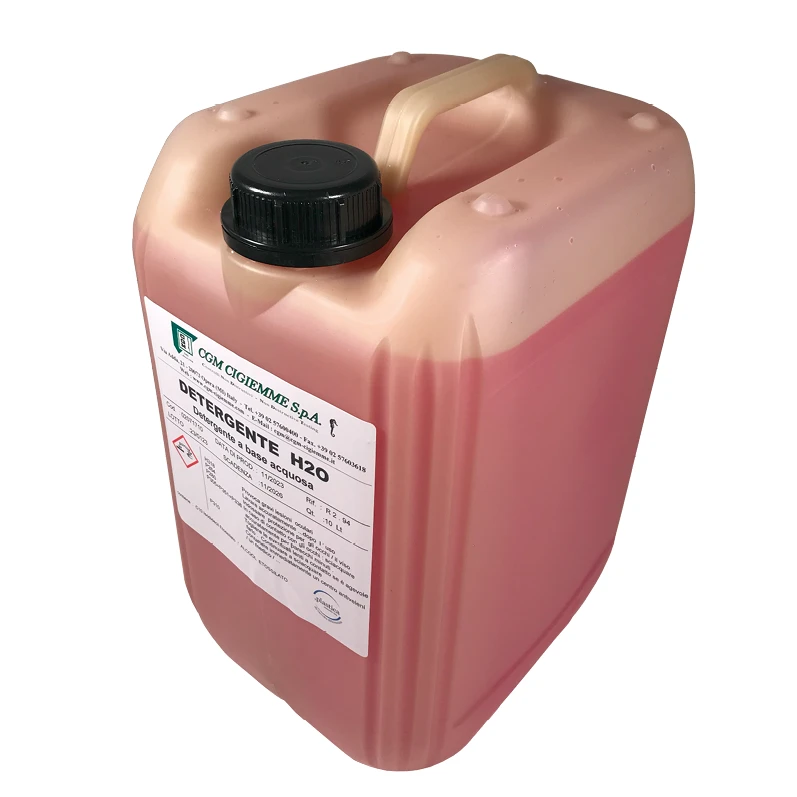

Detergent H2O

Technical datasheet

General description

Detergent H2O is a water-based degreaser used for preliminary and final cleaning in liquid penetrant and magnetic particle testing. It is supplied as a concentrate to be diluted in water with a concentration of 10% to 30%. It is composed by degreasin properties and is ideal for use on surfaces that cannot be in contact with solvents.

Packaging

10 L cans

Part Number: 02071710

Features

  • Not flammable.

  • It can be used in a wide range of concentrations.
  • Non-aggressive cleaning action.

Product Properties

Appearance

Transparent pink liquid

Flash Point Not flammable

User Recommendations

NDT Method

Liquid penetrant and magnetic particle inspection

Shelf life 3 years at T between 5°C and 45°C
Usage temperature

From 4°C to 80°C

Related products

All CGM penetrants and magnetic particles

Related products

Continue reading

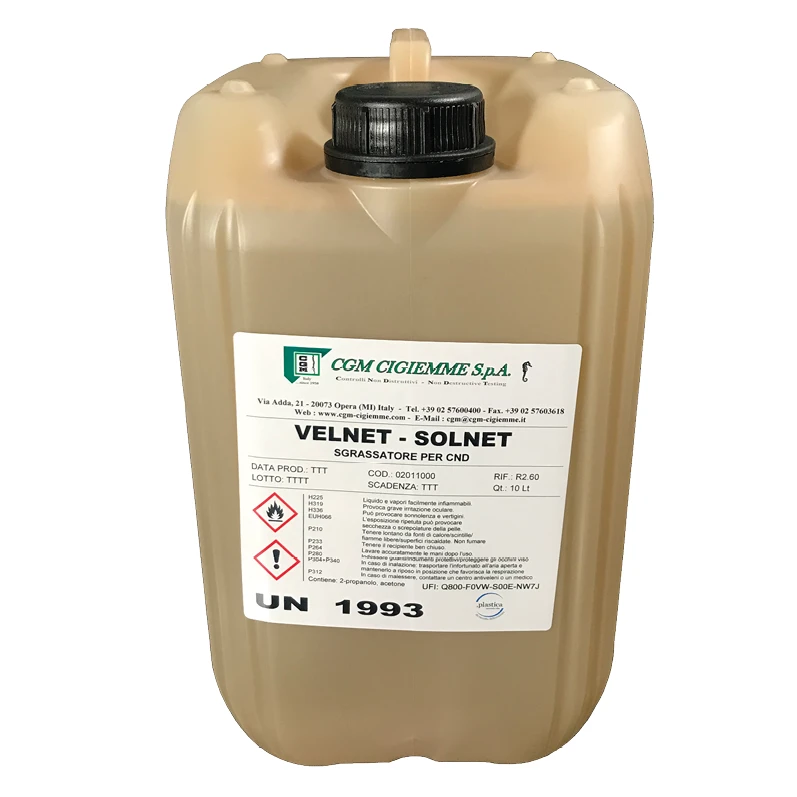

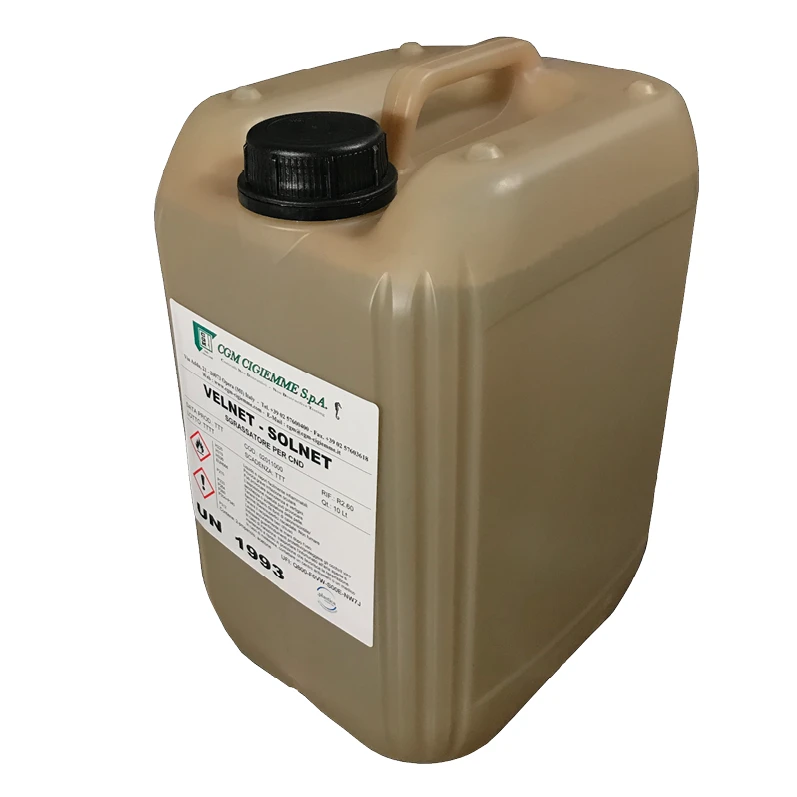

Velnet/Solnet

Technical datasheet

General description

Velnet/Solnet is a solvent to be used for the preliminary cleaning before liquid penetrant inspection and penetrant washing in case of solvent removable liquid penetrant. In addition, it can be used for preliminary cleaning before magnetic particle inspection and for the removal of the white contrast paint, Vecoplast. Its excellent characteristics allow it to be used on a wide range of surfaces to remove oil, grease, and various contaminants. The product was developed considering all application aspects for use in non-destructive testing. It is characterized by fast and complete drying in the pre-cleaning phase and is specifically designed for best removal of solvent-removable penetrants without the risk of over-washing.

Packaging

10 L cans Part Number: 02011000
400 ml spray Part Number: 03011010
200 L metal drums //

In Compliance with

  • ASME V Art. 6
  • ASTM E165
  • EN ISO 3452-2
  • AMS 2644 (Complies with the standard, but not included in the QPL list)
  • PMUC (certificate of compliance upon request)

Features

  • Evaporates quickly.
  • Leaves no residue.
  • It can be used with the entire range of CGM penetrant and magnetic particle products.
  • The cleaning is not overly aggressive.
  • Excellent washability in a wide range of temperatures and penetration times.

Product Properties

Appearance Transparent liquid
Class 2
Flash Point ≈ -20°C

User Recommendations

Shelf life 3 years at T between 5°C and 45°C
Usage temperature From 4°C to 52°C
Water washable penetrants The entire CGM range
Post-emulsifiable penetrants The entire CGM range

Related products
